Pre-Amplifier
- RG2 MK5
- RG3 MK5
- Klangquelle MK3
- Klangquelle Reference Edition
- Erleuchtung: Tube Preamplifier
- Erleuchtung Reference MK2 HD: Tube Preamplifier
Preamplifier, Phono MM/MC selectable, capacity- and impedance matehing via plugs. Inputs: CD, Tuner, AUX, Tape. Outputs: Tape monitor and amplifier. Sophisticated circuitry: completely shielded power supply, filter and mu metal shielded 300 VA transformer. Massive option: chrome or black/silver chassis; engraved. Full metal knobs, frontplate 10 mm, massive. Remote included. ( Option on pair of symmetric XLR Inputs )
Ausführung Reference mit Reference Modul - meistert auch stärkste Hochtonattacken.
Ausführung Reference Edition HD, mit Turbonetzteil Innen 280.000 μF. Klanglich ein Gedicht.
Test Stereoplay 5/2011 : Arbeitsgerät der Redaktion. Highlight.
* All prices are included sales tax of 19%.
Custom duty are not included.
Preamplifier, Pure class A circuitry, 50.000 μF capacitance. External power supply, 3 W sinus at 8 Ohm output make it possible to run up to 300 feet of interconnect cable. lmpedance below I Ohm, two pairs of outputs parallel. Frontplate I 0 mm, engraved. Finish chrome od black/silver. Completely modular circuitry with optional boards. Basic version: 2 x Aux, CD, Tuner, 2 x Tape. Record out switch, balance poti, 2 pairs of outputs. Dimensions: 450 x 80 x 260 mm. Little separate power supply, remote control. Option Monomodules phono MM or MC with impedance and capacitance matching, optional Turbo power supply with 300 VA transformer, 140.000 μF and mains filter, in small black box. Optional in separated case 450 x 100 x 300 mm
with 10 mm front panel. Satisfies the highest demands on tonality, neutrality . An open and extended soundstage.
ln the small line of worlds absolute best pre- amplifiers.
Ein Paar XLR symmetrische Ein- oder Ausgänge mit Top Übertrager
Mono Steckmodule MM Paar mit Kapazitätsanpassung.
Mono Steckmodule MC Paar mit Impedanzanpassung.
Turbonetzteil mit 300 VA Trafo und Netzfilter, High Speed Dioden und 140.000 μF Kondens. im Netzteilgehäuse
Turbonetzteil in Massivgehäuse 450 x 100 x 300 mm, Frontplatte 10 mm
Turbonetzteil Reference, 280.000 μF, Drosselspulennachbau d. Gyratoren, 2x300 VA Mutrafo, Markanter Kraftgewinn.
RG 3 MK 5 Edition mit Vollausstattung - XLR In- und Output, Phono MC, Turbonetzteil Edition
* All prices are included sales tax of 19%.
Custom duty are not included.
"The Enlightenment" . Chrome or Alu black/silver chassis. Dimensions: 450 x 120 x 365 mm. 10 mm massive and engraved
front panel. Separate power supply (300 VA) MU-metal-transformer. Phono MM, Tuner, AUX, 2 Tape (with tape to
tape recording possibility). 2 pre-outputs. Each line-input with its separate impedance matching stage. Output 100 Ohm. Frequency range: 2 Hz - 120.000 Hz. No overall feedback. Ceramic valve sockets. Volume remote control.
Option: MC-stage with mumetal transformer, impedance matching.
Sound: Open, with space around voices and instruments. - Joy at heart! -
* All prices are included sales tax of 19%.
Custom duty are not included.

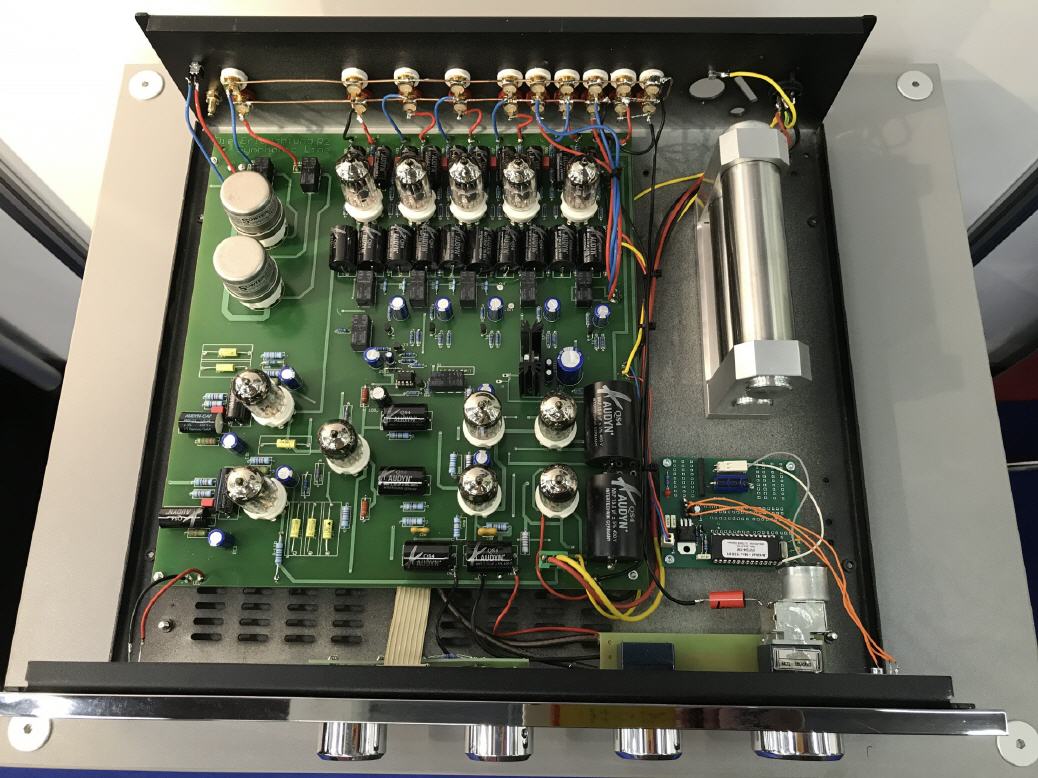

Opens a door into new sound dimensions. Turbo power supply located in a seperated casing of the same size like valve amp. faceplate 10 mm, valve rectifier stage plus 2 MU-metal shielded transformators a 350 VA. Special capacitors in massive aluminium housing. Phono MM realized by using a sophisticated valve stage. MC equipped with additional high performance studio quality transformers. One balanced input as well as a set of symmetrical outputs. Massive metal remote control for volume. Lively and spirited performance. Outstanding precision serving an inspired reproduction.
* All prices are included sales tax of 19%.
Custom duty are not included.
A. Finishing
f. e. metal shielded Alps pots, separated power supply with quality: 300 VA mumetal transformer, 7 pole Hirschmann
professional contact plugs, 56.000 mF capacity, best MKP capacitors, gold plated WBT binding posts, teflon cable, ceramic valve sockets, hand soldered with silver solder. Only high frequency valves with special durability are used
B. Inner values:
Extreme clean power supply and power line conditioners, short signal paths at extreme fast circuits; no overall feed back. Frequency range from 5 Hz - 120.000 Hz. Line section with four double triode valves. Further innovations: - each line - input with its separate impedance matching stage. Very rigid construction.
C. Appointments:
Phono MM, CD, Tuner, AUX, 2 x Tape with monitoring, 2 x Pre Out at 100 Ohm, balance poti. Optional Phono MC stage with mumetal transformer. Volume remote control. Front 10 mm massive steel, engraved, massive buttons. Finish „chrome„ or aluminium silver or black.
D. Sound quality:
Black, deep bass - precise and dry - neither precarious nor bloating - the total sound has no curtain, similarily down from the bass to the very top. Beautiful reproduction of the colours of sound. The surprise: the music is not standing in your listening room but unites with it. Hard to declare- a symbiose like this is rarely to be heard. To make a long story short - when it is in tune - you will be addicted to it.
Remote for volume
Eine Ersatzröhre selektiert:
* All prices are included sales tax of 19%.
Custom duty are not included.
Opens a door into new sound dimensions.
Turbo power MK 2 HD supply located in a seperated casing of the same size like
valve amp.
faceplate 10 mm, valve rectifier stage plus 2
MU-metal shielded transformators a 350 VA. Special capa-
citors in massive aluminium housing. Phono MM realized by using a sophisticated valve stage. MC equipped with additional high performance studio quality transformers. One balanced input as well as a set of symmetrical out puts. Massive metal remote control for volume. Lively and spirited performance. Outstanding precision serving an inspired reproduction.
inkl. Fernbedienung für Volume.
A surrogate tube:
* All prices are included sales tax of 19%.
Custom duty are not included.
